P4-4

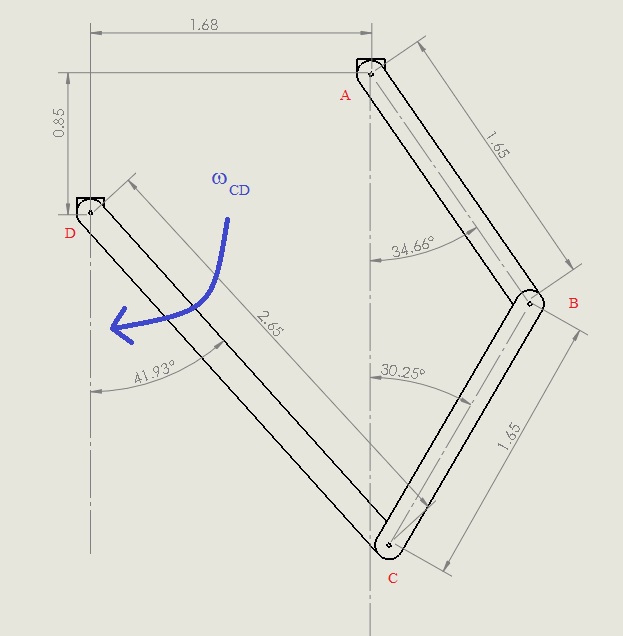

In the four-bar linkage shown, link CD is given an angular velocity of delta.deltadeltadelta rad/s clockwise as shown. Assuming the dimensions are in inches and the angles are measured with respect to vertical, determine the angular velocity and links AB and BC at this instant, plus the linear velocity of point C.
