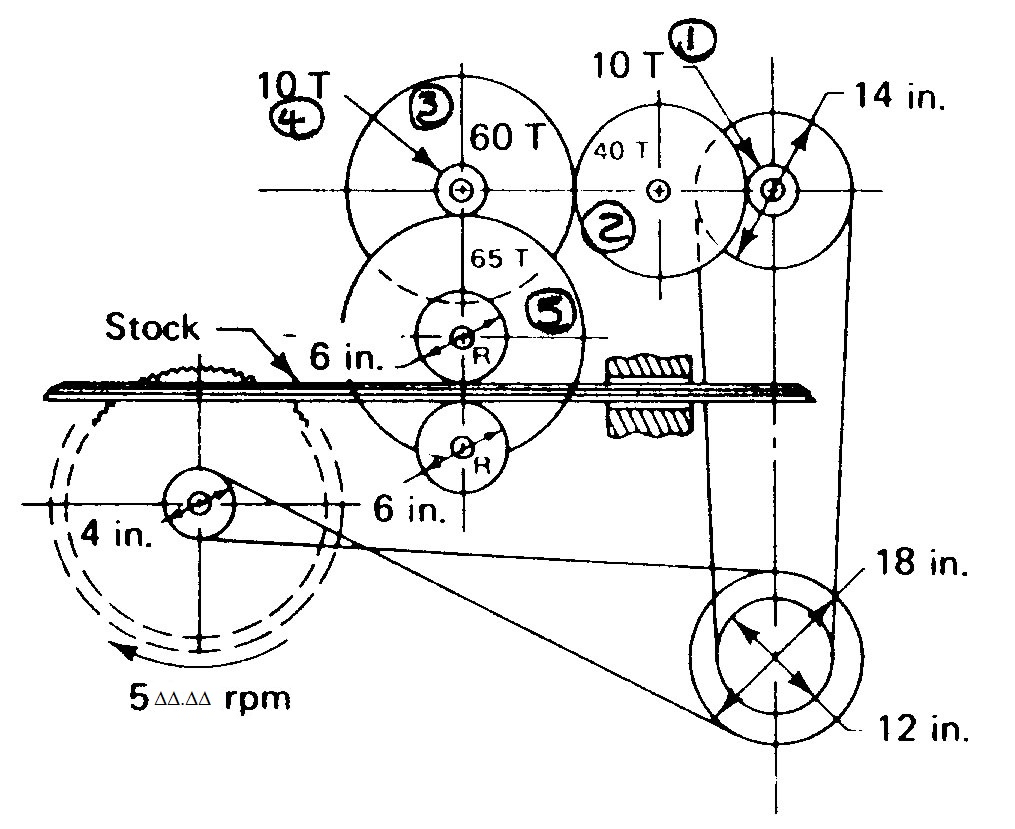

The gear train shown is arranged to feed lumber between the two 6-in-diameter rollers (R ) into a cutting blade for the purpose of ripping the lumber. The blade is being directly driven at 500 rpm. A power takeoff which consists of the belt system shown drives the rollers for the purpose of feeding the stock. Determine the speed of the stock in ft/min and the direction of stock movement.
